Signal Hopper Scale HMI Packaging Weighing Controller For Automatic Bagging Machine BST106- M10( AL )
Main Features:
1. Suitable for Ration Packing Scale with optional Hopper-weighing Mode, Bag-weighing Mode and Loss-in-weight Mode.
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
4. 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
5. Loadcell Interface
l Max. Connection Quantity: 16 Loadcells (350Ω).
l 24-bit High-precision and high-speed ∑-A/D conversion module with 1/1,000,000 internal resolution and samplingfrequency 800Hz.
l Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strongvibration on the load receptor, and the rapid response capability when the weight signal changes.
² I/O Interface
l 9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
l Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
l 2 Definable analog signal AOs[0~10V] for weight signal output or ‘High/Medium/Low Speed Feed’ control.

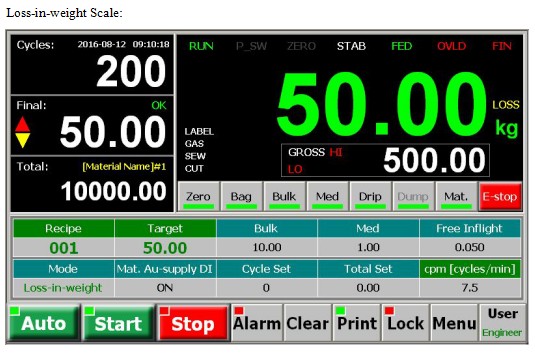

Data Display & Quick Setting
| Name | Description | Authorization |
| Biggest Digits | Real-time Weight [Weight Unit]. | |
| [HI] | Weight Upper Limit Alarm [Bucket Scale / Bag Scale]. | |
| [MAT_HI] | Material Level High Limit Alarm [Bucket Scale / Bag Scale]. | |
| [MAT_LO] | Material Level Low Limit Alarm [Bucket Scale / Bag Scale]. | |
| [GROSS] | Material Gross Weight in Weighing Bucket [Loss-in-weight Scale]. | |
| [HI] | Gross Weight Upper Limit Alarm [Loss-in-weight Scale]. | |
| [LO] | Gross Weight Lower Limit Alarm [Loss-in-weight Scale]. | |
| [Cycles] | Batch Count. | |
| [Final] | Final Feeding Weight. | |
| [▲]/[HI] | Up Tolerance Alarm. | |
| [▼]/[LO] | Low Tolerance Alarm. | |
| [TOTAL] | Totalized Weight. | |
| [Date&Time] | Date&Time. | |
| |
| [RUN] | Auto Running state. | |
| [PAUSE] | Pause state. | |
| [P_SW] | DI switch ‘Dumping Gate Closed in Place’ turned on. | |
| [ZERO] | Weight ≤ Non-load Zero Range. | |
| [STAB] | Weight is stable. | |
| [FED] | Feeding Ended. | |
| [OVLD] | Overload Alarm. | |
| [FIN] | Batch Target Finished. | |
| [LABEL]/[GAS]/ [SEW]/[CUT] | In the process of ‘Label on Bag’ / ‘Fill Gas into Bag’ / Bag-sewing / Thread-cutting. | |
| |
| [Recipe] | ‘Working Recipe No.’ Setting. | All Users |
| Recipe Parameters Setting. | Engineer |
| Flow Parameters Setting. |
| [Target] | ‘Target Weight’ Setting. | All Users |
| [Bulk] | Bulk Lead Weight. | |
| [Med] | Medium Lead Weight. | |
| [Inflight] | Dribble Inflight Weight. | |
- ‘Auto Inflight’: ‘Auto Correct Inflight’ function is open.
- ‘Free Inflight’: ‘Auto Correct Inflight’ function is closed.
| |
| |
| [Mode] | 1-Bucket Scale / 1-Bag Scale / Loss-in-weight Scale. Refer to Parameter [300] ‘Application Mode’. | Engineer Administrator |
| [Mat. Au-supply DI] | ‘Material Auto-supply Permission’ DI turns ON/OFF. | |
| [Cycle Set] | Batch Count Target. | |
| [Total Set]] | Batch Weight Target. | |
| [cpm] | Cycle Speed [Cycles/min]. | |
Error Messages
| Message | Alarm Cause | Solution |
| RAM Fault | The chip RAM is damaged. | Replace the chip RAM. |
| EEPROM Fault | The chip EEPROM is damaged. | Replace the chip EEPROM. |
| Parameter Error | The chip EEPROM is damaged. | Replace the chip EEPROM. |
| Weighing Signal Error | Weighing signal reversed or not connected. | Connect the loadcell correctly. |
| ADC Fault | The chip ADC is damaged. | Replace the ADC module. |
| Over ADC Range | Weighing signal exceeds A/D conversion range. | 1. Check if the loadcell is connected. 2. Check if the capacity of loadcell is too small. 3. Check if the loading weight is too big. |
| Overload Alarm | Weight > (Scale Capacity + 9 × Scale Division). | 1. Check if the set value of parameter [102] ‘Scale Capacity’ is reasonable. 2. Check if the loadcell is connected. 3. Check if the capacity of loadcell is too small. 4. Check if the loading weight is too big. |
| Internal Data-bus Fault | | Please contact manufacturer. |
