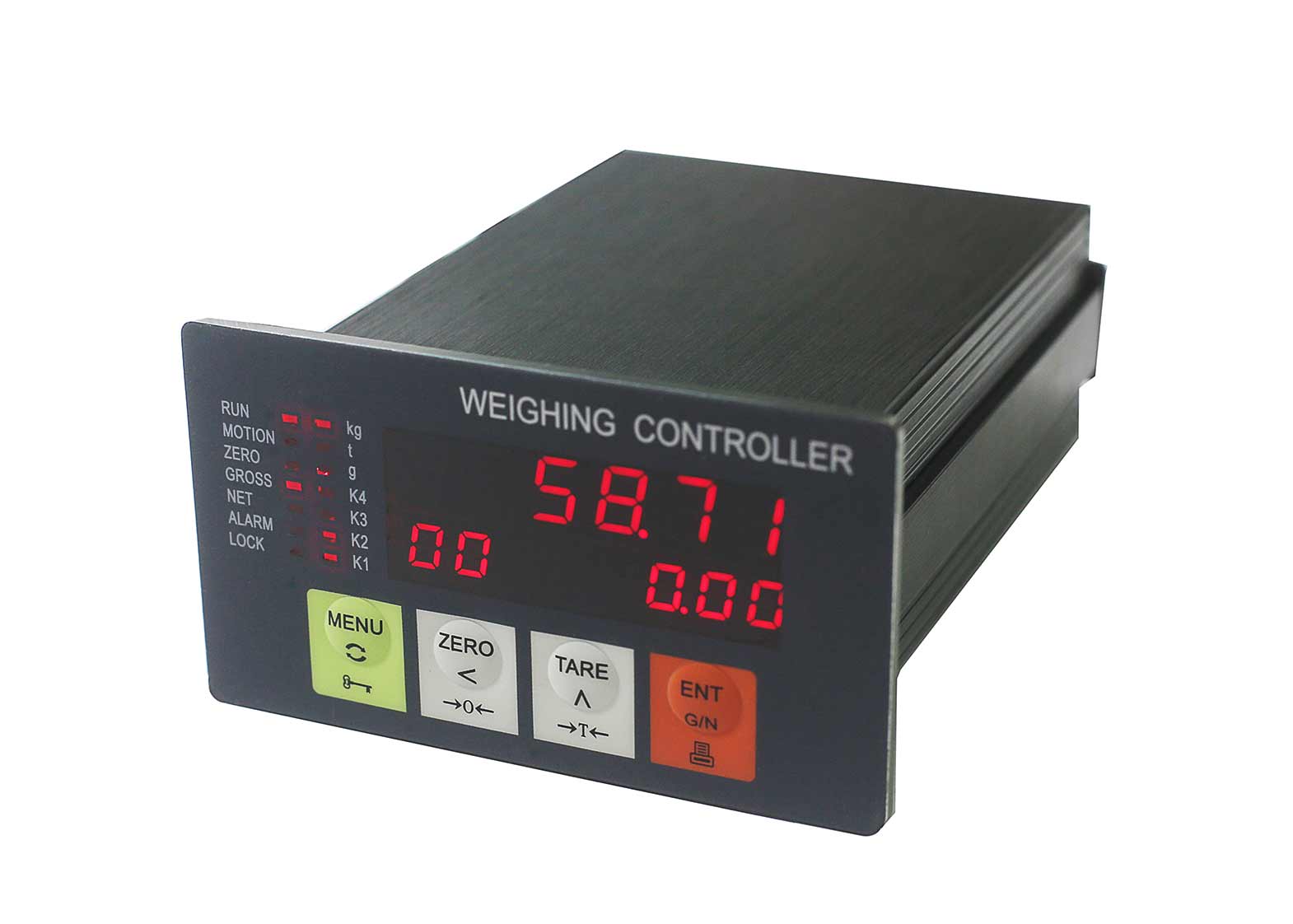

LED Touch Tone Bagging Controller Weighing Packaging Calculator For Packing Machine

  • 1
  • 2
  • 3

Brand Name : Supmeter

Model Number : BST106-B66(A)

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs/month

Delivery Time : 3-10 working days

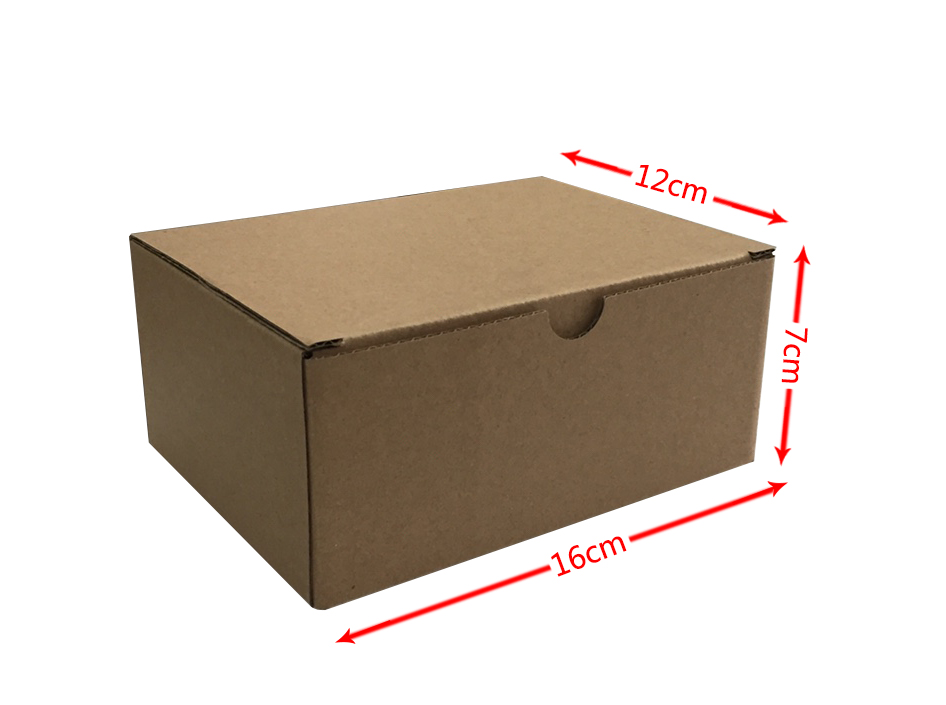

Packaging Details : 1pcs/box

Product name : Ration Packing Controller

Packing : 1pcs/box

MOQ : 1pcs

Application : Increment packing

configurate : With Ao (4~20mA), RS232, MODBUS RTU

Contact Now

LED Touch-tone Weighing Packaging Calculator for Packing Machine with Ethernet TCP/IP and Modbus TCP

Main Features:

  • Suitable for Ration Packing Scale. Optional Application Modes: Single-hopper-weighing Mode [Single-scale Mode], Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.

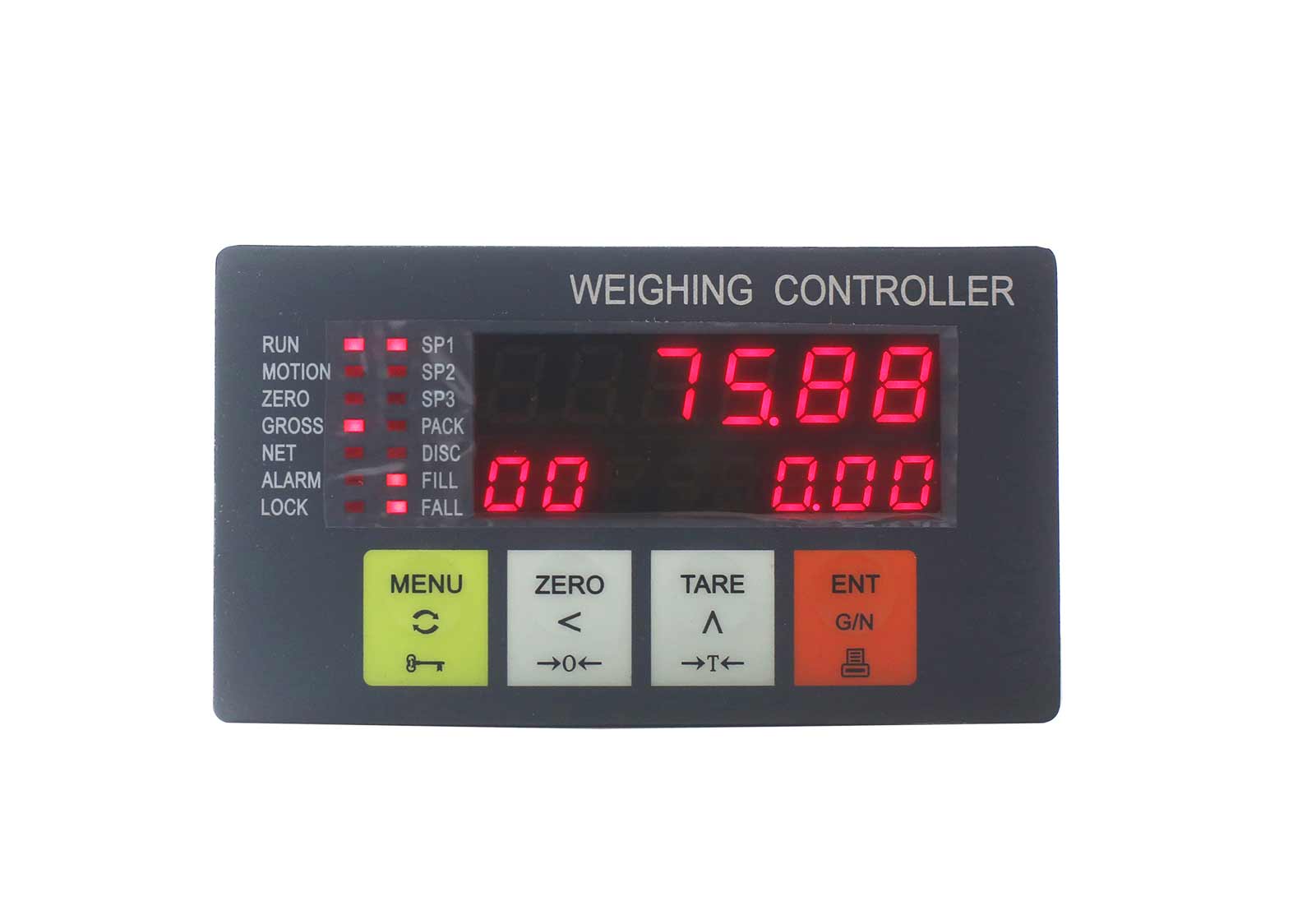

  • 6+8 Red LED digital tubes for English character and digit display.
  • 4-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Max. Connection Quantity: 4 Loadcells (350Ω).
  • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
  • Optional Data Calibration function.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
  • Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
  • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
  • Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Auto Pause for Deviation Alarm’ function.
  • Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
  • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
LED Touch Tone Bagging Controller Weighing Packaging Calculator For Packing Machine
LED Touch Tone Bagging Controller Weighing Packaging Calculator For Packing Machine
LED Touch Tone Bagging Controller Weighing Packaging Calculator For Packing Machine

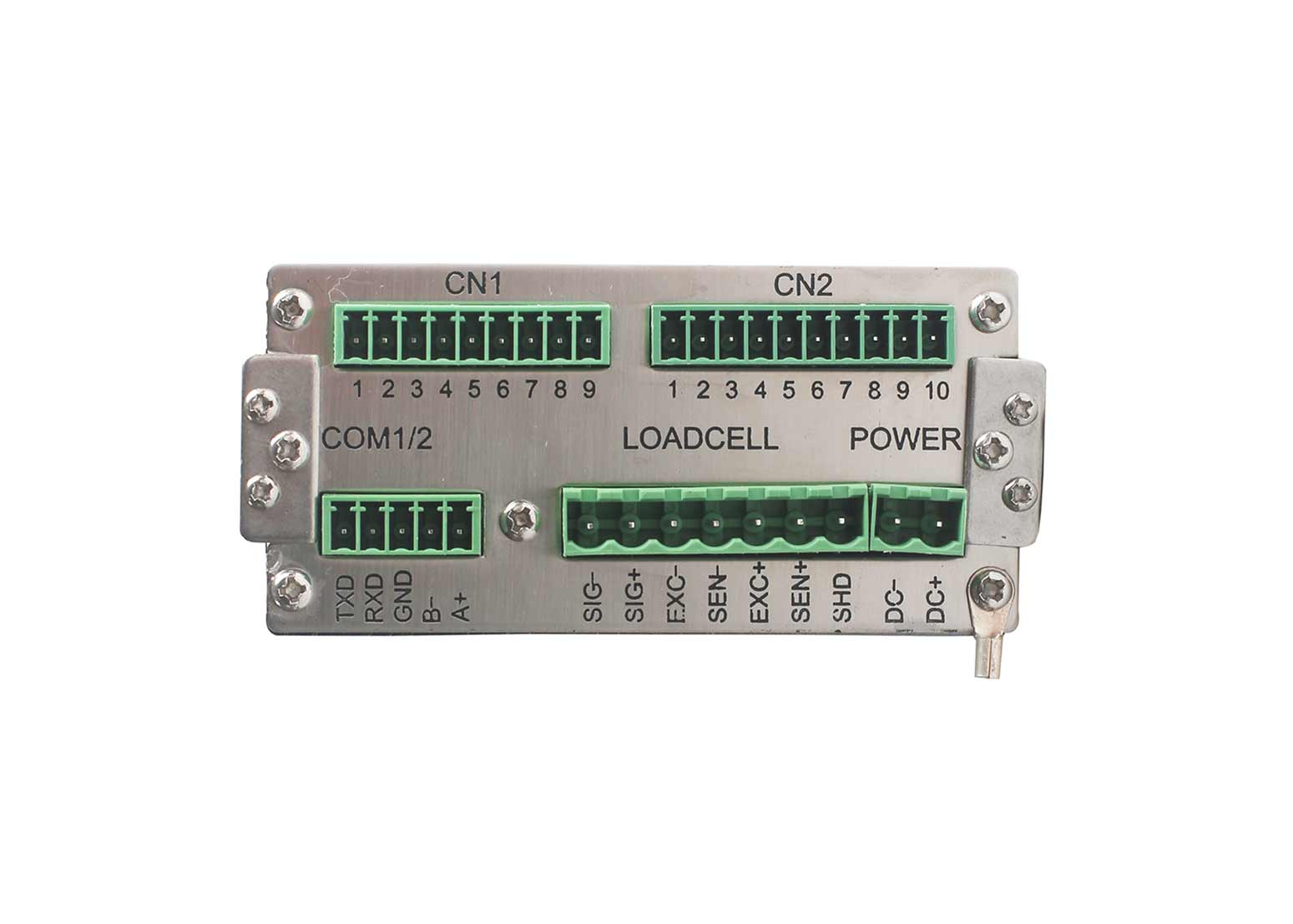

DI/DO Function Definition
CN1 [DI]
No. Pin Signal Name Description
1 COM COM DI Common Terminal [DC-].
2 DI1 AUTO

Auto/Manual.
ON: Auto state.
OFF: Manual state / Emergency Stop.
3 DI2 START

Start/Dev.Ack [Deviation Alarm Acknowledge]
In running process: Dev.Ack.
Pause state: Dev.Ack & Recover Running.
OFF→ON→OFF.
4 DI3 BAG_I

Bag-clamp/release Request.
OFF→ON→OFF.
Slave Controller of Double-hopper-weighing Mode: Unused.
5 DI4 DUMP_I

Hopper-weighing Mode: Manual Dump.
Valid at Manual state.
ON: Manual Dump; OFF: Stop.
Bag-weighing Mode: Unused.
6 DI5 TARE

Single-hopper-weighing Mode: Manual Tare.
Bag-weighing Mode: Manual Tare.
OFF→ON→OFF.
HDSK_I Host Controller of Double-hopper-weighing Mode: Handshaking Signal from Slave Controller.
Slave Controller of Double-hopper-weighing Mode: Unused.
7 DI6 SP3_I

Manual SP3 Re-feed.
Valid at Manual state and Auto-pause state with Negative Deviation Alarm.
ON: Start SP3 Low-speed Feeding.
OFF: Stop SP3 Low-speed Feeding.
