Panel Mounted Weigh Feeder Controller With Ration Flow Feeding

Name: Panel Mounted Weigh Feeder Controller With Ration Flow Feeding
Brand: SUPMETER
Price: 400 USD

Panel Mounted Weigh Feeder Controller With Ration Flow Feeding Manufactures

Brand Name : SUPMETER

Model Number : BST100-E01

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : 400 USD PER UNIT

Payment Terms : T/T

Supply Ability : 1000 UNIT PER MONTH

Delivery Time : 3 WORKING DAY

Packaging Details : Carton packing

installation : panel mounted

Display : LCD

Communication : RS232

A0 : 4-20mA

Open Switch Input : 3DI

Open Switch Output : 4DO

Contact Now

Loss-in-weight Weighfeeder Controller With Ration Flow Feeding

Main Features:

Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
EMC design with high anti-jamming capability, suitable for industrial environment.
32-bit ARM CPU with 72MHz clock & high arithmetic speed.
128×64 LCD display screen with 7 background colors for English display.
16-key English keypad.
Menu&Shortcut mode operation with key tone.
24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
Broad-range speed pulse input circuit.
Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
Max. Connection Quantity: 8 Loadcells (350Ω).
Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
One optional ‘Flow Setpoint’ analog signal input [AI: 4~20mA].
Max.3 definable ‘Flow/Control Current /…’ analog signal outputs [AO: 4~20mA].
Quick and steady PID ration feeding control.
3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].
The feeder and belt weigher can be started and stopped by DI&DO signal.
1 ‘Totalized Weight High-speed Pulse’ output [PO].
2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
Weight Records per shift/day/month of a year can be queried and printed.
With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Model Panel-mounting Installation
Panel Mounted Weigh Feeder Controller With Ration Flow Feeding

 Operating Temperature: -25℃～+45℃.
 Protection Level of Front Panel: IP65.
 Accuracy Grade: 0.5.
 Accuracy of Flow Control: 0.5%~1.0%.

Keypad Operation

Menu Operation
Key Name	Description
【MENU】 (【ESC】)	Enter Main Menu. Exit.
【ENT】	Enter/Save.
【▲】	Cursor shifts up or left. Display the previous interface or option.
【▼】	Cursor shifts down or right. Display the next interface or option.
【0~9】	Digit Input.
Quick Operation
【LOCK】	Key-locking. Key-unlocking.
【F1】	Return to the initial display interface.
【SET】	Flow Set Value Setting.
【ADJ-】	Control Current -1mA.
【ADJ+】	Control Current +1mA.
【AUTO】	‘Manual/Auto’ Control Mode Selection.
【EXT】	‘Internal/External’ Flow Set Mode Selection.
【ZERO】	Zero Calibration.
【CAL】	Dynamic Span Calibration.
【CLS】	Clear Screen: Clear display value of Totalized Weight.
【REC】	Query and print Weight Record.
【PRINT】	Print.

Product Tags:

Panel Mounted Weigh Feeder Controller

Weigh Feeder Controller Ration Flow Feeding

LCD Weigh Feeder Controller

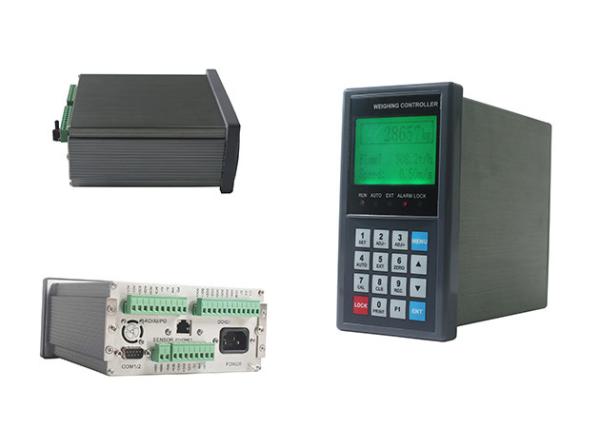

Panel Mounted Weigh Feeder Controller With Ration Flow Feeding Images
