Belt Loss In Weight Weight Controller System With Ration Flow Feeding / Weight Totalizing

Name: Belt Loss In Weight Weight Controller System With Ration Flow Feeding Weight Totalizing
Brand: SUPMETER
Price: 500 USD

Belt Loss In Weight Weight Controller System With Ration Flow Feeding / Weight Totalizing Manufactures

Brand Name : SUPMETER

Model Number : BST100-E81

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : 500 USD PER UNIT

Payment Terms : T/T

Supply Ability : 1000 UNIT PER MONTH

Delivery Time : 3 WORKING DAY

Packaging Details : Carton packing

installation : panel mounted

Display : LCD

Communication : RS232

A0 : 4-20mA

Material : steel

Contact Now

belt loss-in-weight weighfeeder controller with ration flow feeding/weight totalizing
For: Ration Belt Weighfeeder

Main Applications

Belt Weigher with Weight Totalizing.
Ration Belt Weighfeeder with Ration Flow Feeding.
Loss-in-weight Weighfeeder with Ration Flow Feeding.

Main Features

EMC design with high anti-jam for industrial environment.
DC24V power input with reverse polarity protection.
32-bit ARM CPU with 72MHz clock & high arithmetic speed.
128×64 LCD display screen with 7 background colors.
24-bit ∑-△ADC with internal resolution 1/1,000,000.
High sampling frequency 400Hz.
Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
Zero Calibration & Auto Zero Tracking.
Span Calibration & Segmenting Correction.
Speed Calibration & Belt Length Calibration.
The feeder and belt weigher can be controlled by DI&DO.
Quick and steady PID ration feeding control.
Queryable Records per shift/day/month of a year.
Definable DI/DOAO/COM[Communication Port].

Belt Loss In Weight Weight Controller System With Ration Flow Feeding / Weight Totalizing

Technical Specifications

 Power Supply: AC220V±15%, 50/60Hz, Max. 15W.
 Loadcell Excitation Voltage/Current: DC10V/250mA.
 8 Loadcells[350Ω] connectable.
 Weighing Signal Input Range: 0~25mV.
 Speed Sensor Excitation Voltage/Current: DC12V/100mA.
 Speed Signal Input Range: 0.5~3000Hz.
 3 Normally Open Switch Inputs [DI].
 4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
 1 ‘Totalized Weight’ Pulse Output [PO]: DC5~24V, 100mA.
 2 ‘PID Control’ Analog Output [AO]: 4~20mA, 0.05%FS.
 1 ‘Flow Set’ Analog Input [AI]: 4~20mA, 0.05%FS.
 COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
 COM2: RS232.
 Connect Host IPC, Remote Display, Printer&Wireless Module.
 Outline Size [W×H×D]: 164 × 86 × 193 mm.

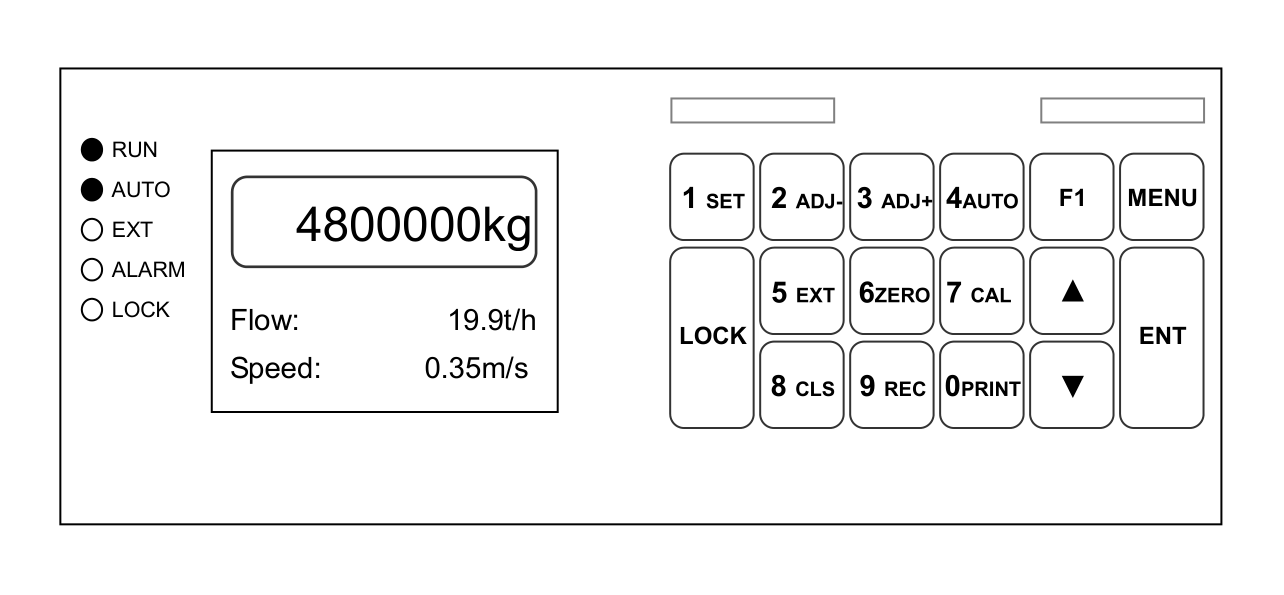

Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name	Description
【MENU】 (【ESC】)	Enter Main Menu. Exit.
【ENT】	Enter/Save.
【▲】	Cursor shifts up or left. Display the previous interface or option.
【▼】	Cursor shifts down or right. Display the next interface or option.
【0~9】	Digit Input.
Quick Operation
【LOCK】	Key-locking. Key-unlocking.
【F1】	Return to the initial display interface.
【SET】	Flow Set Value Setting.
【ADJ-】	Control Current -1mA.
【ADJ+】	Control Current +1mA.
【AUTO】	‘Manual/Auto’ Control Mode Selection.
【EXT】	‘Internal/External’ Flow Set Mode Selection.
【ZERO】	Zero Calibration.
【CAL】	Dynamic Span Calibration.
【CLS】	Clear Screen: Clear display value of Totalized Weight.
【REC】	Query and print Weight Record.
【PRINT】	Print.

Installation

 Operating Temperature: -25℃～+45℃.
 Protection Level of Front Panel: IP65.
 Accuracy Grade: 0.5.
 Accuracy of Flow Control: 0.5%~1.0%.

Terminal

Ration Flow Auto-Feeding System
